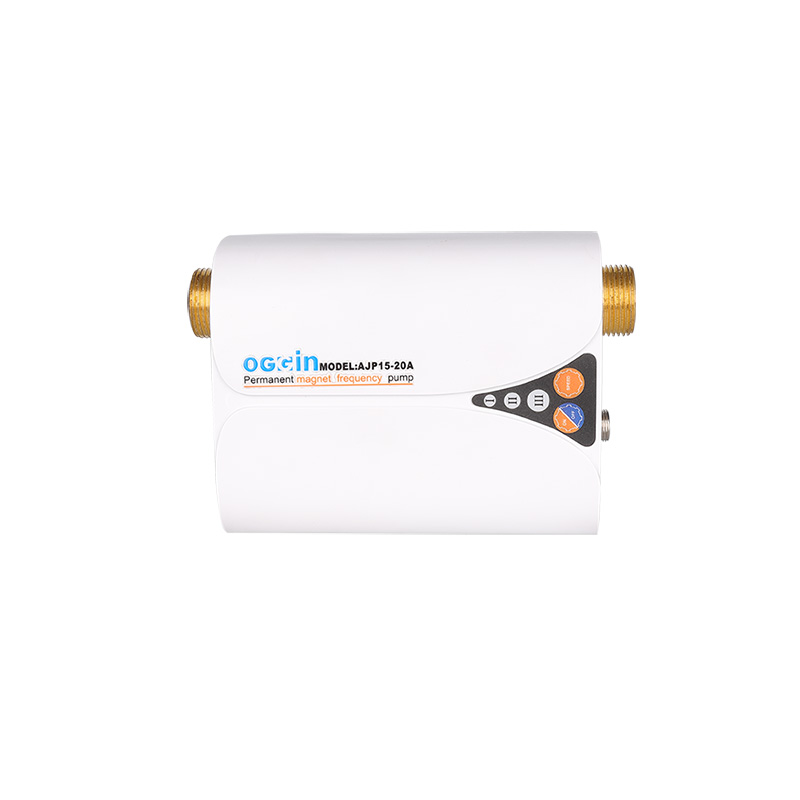

36V Permanent Magnet Frequency Pump
The AJP15-20B model is a 36V DC booster pump equipped with a permanent magnet variable-frequency motor. It integrates noise reduction shielding, variable-frequency regulation, and intelligent start-stop functionality, making it suitable for various applications including bathroom pressure boosting, smart toilet water supply, and solar water heater systems.
85w
20m
1.9m³/h
Advantages of Frequency Booster Pump
High Efficiency & Energy Saving - Equipped with a permanent magnet motor, delivering outstanding performance with higher energy efficiency than traditional products and significantly extended service life.
Safe & Reliable - Designed with 36V safe voltage for human contact, compliant with safety standards for worry-free home use, effectively preventing electric leakage hazards.
Compact Design -Small footprint combined with exceptional performance, saving space while ensuring efficient output.
Quiet Operation - Low vibration and low noise design, optimized for indoor environments.
Maintenance-Free - Eliminates mechanical seals to reduce wear and minimize downtime.
Versatile Application - Operates within a temperature range of 0°C to 110°C, making it ideal for both hot and cold water circulation systems.

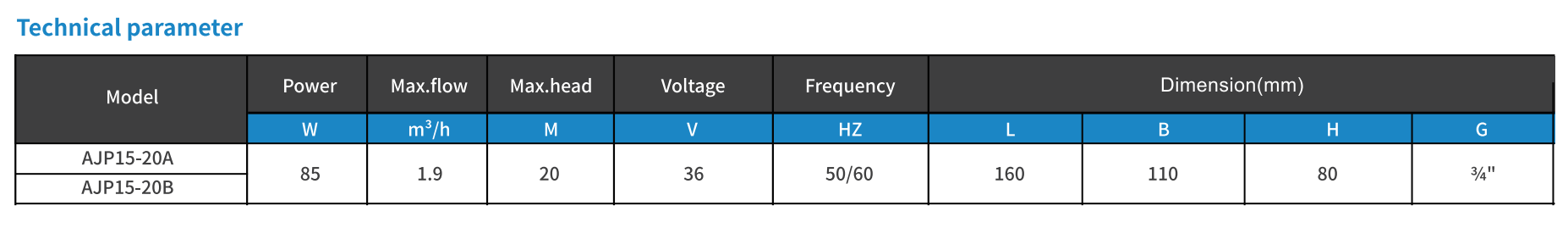

Product Selection
Application Fields
1.Bathroom Pressure Boosting Solution
This 36V smart variable-frequency product delivers a powerful lift of up to 20 meters, effectively resolving daily water shortage and intermittent water supply issues in high-rise residences. Featuring a fully shielded silent design, it operates quietly without disturbance.
2.Car Wash Pressure Boosting System
This product acts as an “intelligent heart” for car wash systems, not only stabilizing fluctuating water pressure but also continuously optimizing water flow. It transforms ordinary rinsing into an efficient, professional cleaning experience, making car washing easier and more thorough.
3. Solar Water Heater Boosting System
Residential solar water heaters are often rooftop installations. Equipped with the AJP15-20B, it effectively addresses challenges of long water delivery distances and insufficient supply pressure, ensuring stable water delivery.
4.Medical Device Applications
Certain medical equipment requires hose connections. This product features intelligent start/stop functionality: it automatically activates when the device is turned on and immediately enters standby mode upon shutdown, offering simple operation and energy efficiency.
