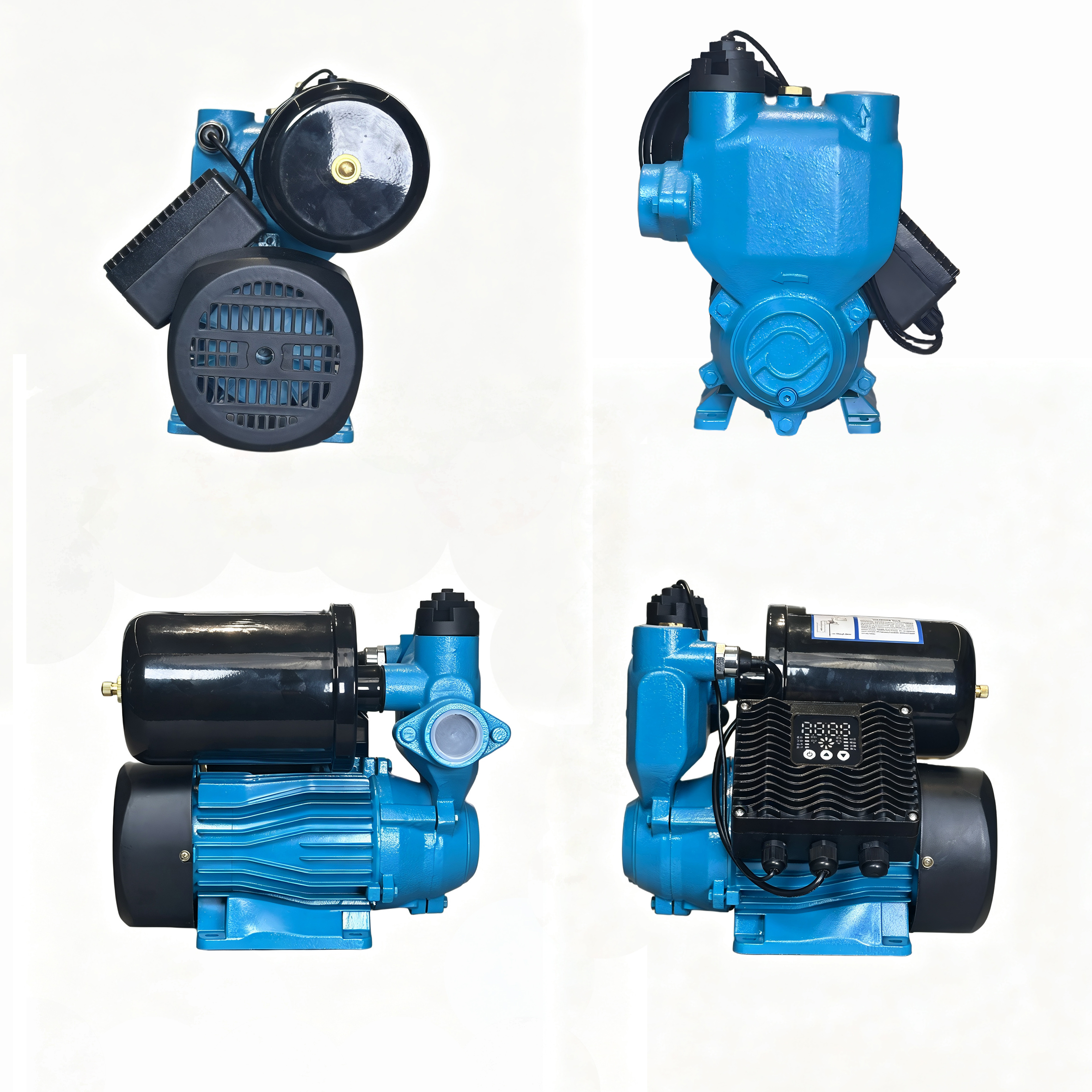

Are you tired of fluctuating water pressure while showering? Or perhaps you need a reliable solution to boost water from a low-lying tank to your entire household? Introducing the PW-800P, our flagship 800W smart inverter booster pump designed for those who demand industrial-grade performance with residential-level intelligence.
Why Choose the PW-800P?
The PW-800P isn't just another water pump; it’s a sophisticated water management system. By combining high-end hardware with smart software, it solves the most common plumbing headaches permanently.
1. Permanent Magnet Motor: Unmatched Efficiency
At the heart of the PW-800P is a Permanent Magnet Synchronous Motor (PMM). Unlike traditional induction motors, the PMM uses advanced magnetic technology to reduce energy loss, generate less heat, and provide a significantly higher power-to-size ratio. This means more power for your pipes with lower electricity bills.
2. Intelligent Constant Pressure Control
Forget about the "hot-cold-hot" shower experience when someone else turns on a tap. The PW-800P features an integrated Variable Frequency Drive (VFD). It monitors your water usage in real-time and adjusts the motor speed in milliseconds to ensure your water pressure stays exactly where you set it, regardless of how many taps are open.
3. Built to Last: Premium Hardware Configuration
Brass Impeller
● : Superior corrosion resistance and durability. Unlike plastic impellers, brass withstands temperature changes (up to 80°C) and micro-abrasives in the water, preventing "stuck" incidents after long periods of inactivity.
304 Stainless Steel Shaft
● : Eliminates the risk of rust-induced shaft locking. The high-grade SS shaft ensures smooth rotation and extends the life of the mechanical seals.
Self-Priming Capability
● : Designed for versatility, this pump can easily handle suction tasks from shallow wells or underground tanks.
Technical Specifications
Feature | Specification |
Model | PW-800P |
Rated Power | 800W (Approx. 1.1 HP) |
Max. Head | 43 Meters (4.3 Bar Pressure) |
Max. Flow | 67 L/min (4.0 m³/h) |
Motor Type | Permanent Magnet Inverter Motor |
Impeller Material | High-Quality Brass |
Shaft Material | 304 Stainless Steel |
Inlet/Outlet Size | 1" x 1" (Standard) |
Media Temperature | 0°C - 80°C |
Multi-Scenario Applications
The PW-800P is the perfect choice for:
Luxury Villas & Large Residences
● : Easily supports multiple bathrooms, high-flow rain showers, and kitchen appliances simultaneously.
Rooftop Tank Boosting
● : Perfect for homes where gravity tanks don't provide enough pressure for modern appliances.
Garden Irrigation
● : Maintain a steady, high-pressure flow for sprinklers and outdoor cleaning.
Hot Water Boosting
● : Durable enough to handle hot water return systems up to 80°C.
Experience the Smart Water Future
Upgrade your home with the PW-800P. Enjoy the peace of mind that comes with premium materials and the comfort of perfect, constant water pressure.
[Contact Our Sales Team for Bulk Pricing & OEM Samples] Direct from Factory | Custom Logo & Packaging Available
