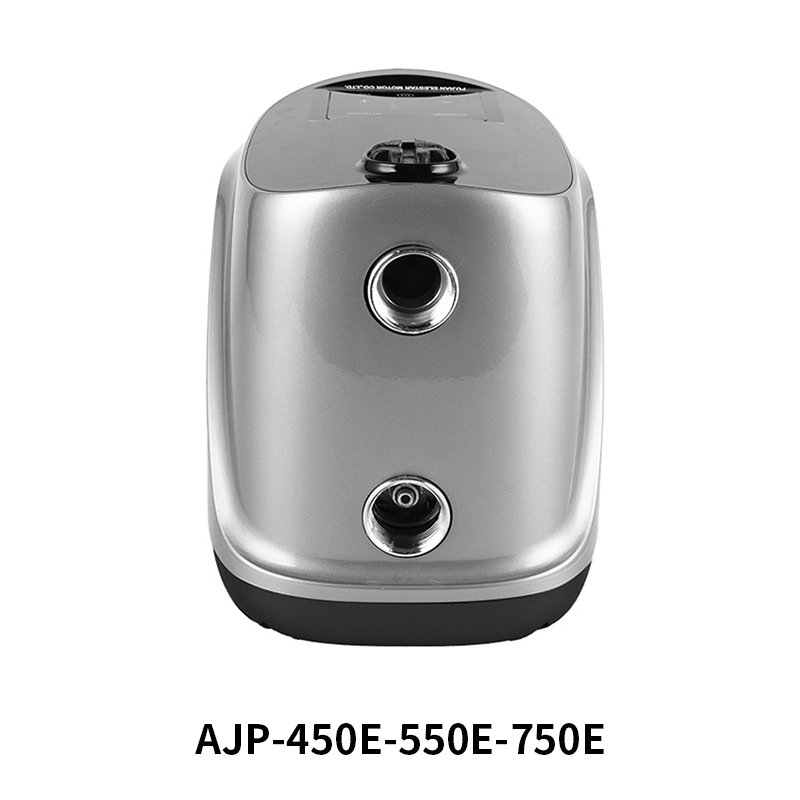

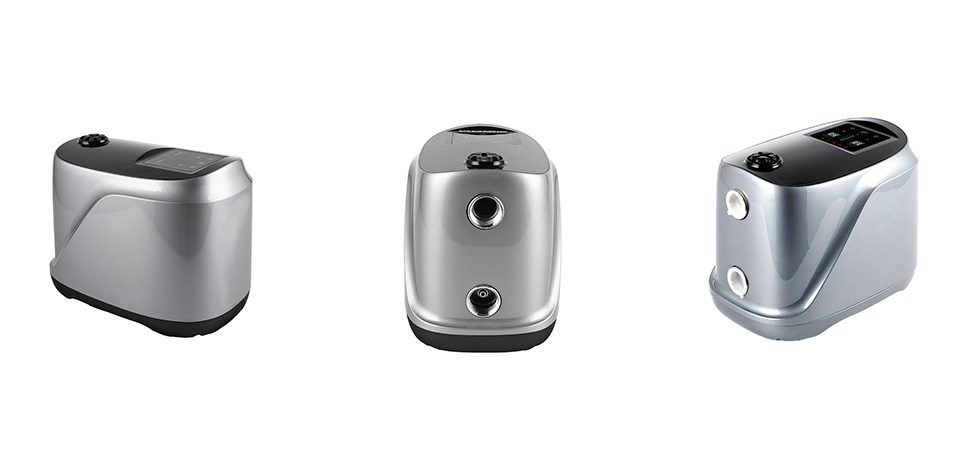

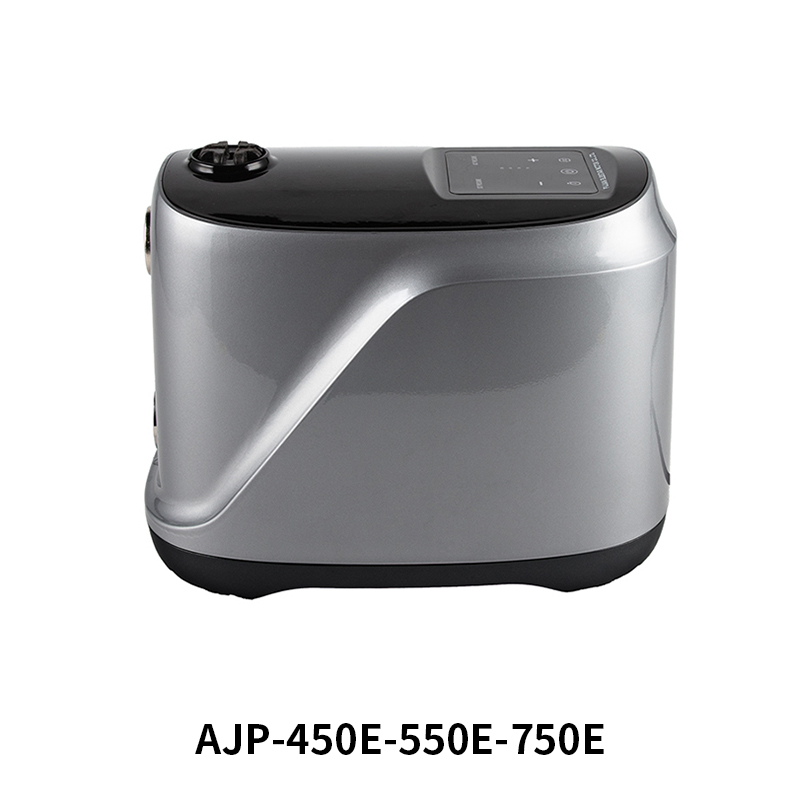

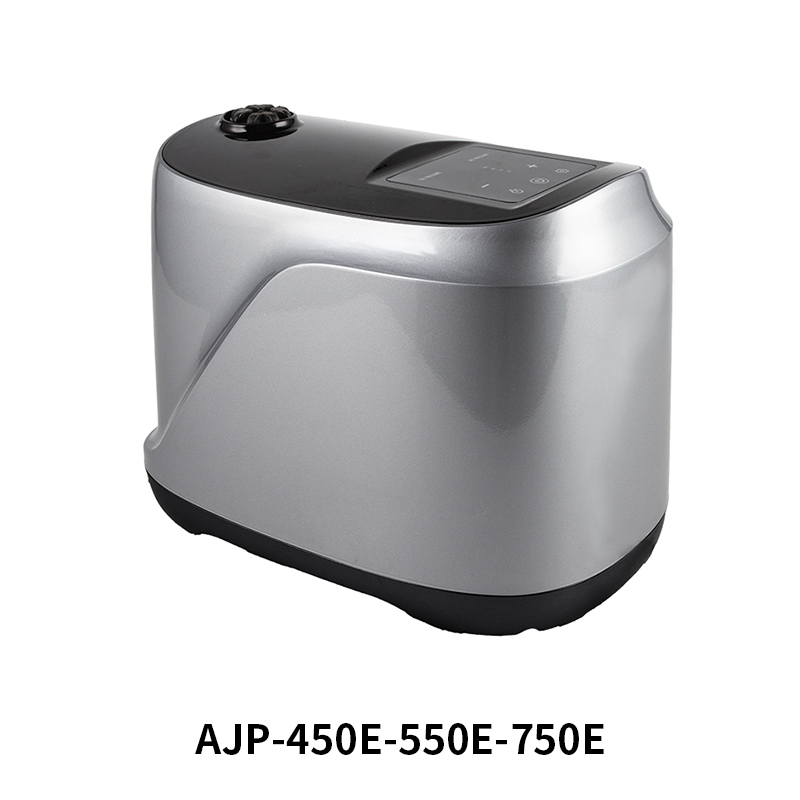

AJP Permanent Magnet
The AJP series is a full-house pressure-boosting variable-frequency pump designed for residential water supply, equipment support, pipeline pressure boosting, high-rise building water supply and drainage, as well as central air conditioning and centralized heating circulation systems. This series integrates modern electronic control technology, combining intelligent variable-frequency operation with constant-pressure speed regulation.
750w
55m
5600r/min
Advantages of Intelligent Frequency Pump
Permanent Magnet Synchronous Motor -High efficiency, low noise, ultra-reliable.
Variable Frequency Constant Pressure System - SEnergy savings exceeding 20%, stable water pressure, enhanced water experience.
Intelligent Protection Mechanism - Features automatic start/stop, water shortage protection, leak detection, and more.
Energy-Saving Features - Variable frequency constant pressure technology reduces energy consumption by over 20%.
Ambient temperature - 0°C to 40°C
Liquid temperature - 0°C to 90°C
Degree of protection - IPX4
Self-Priming Capability - 8m

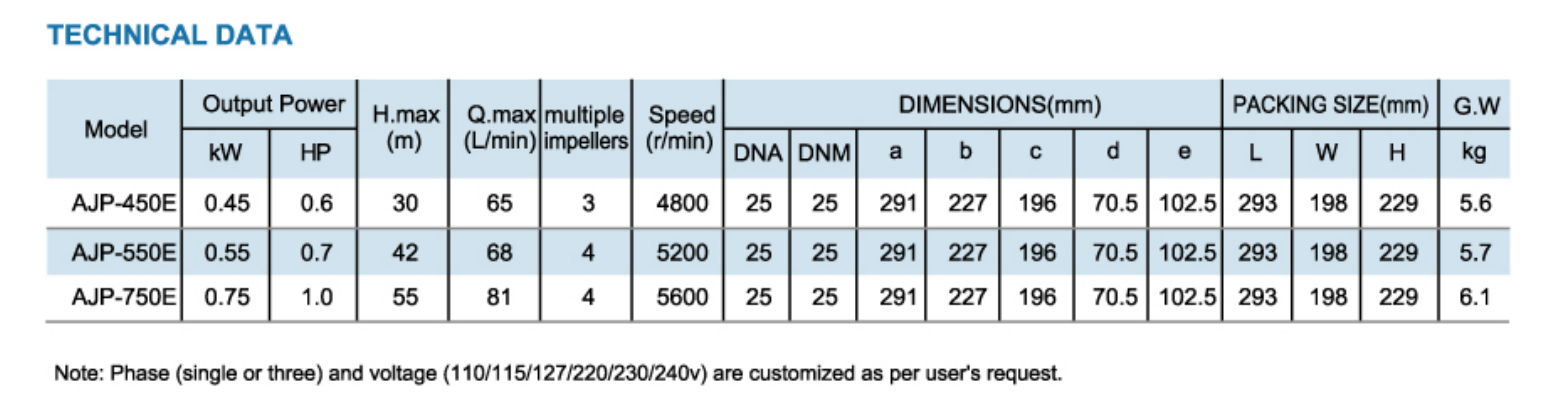

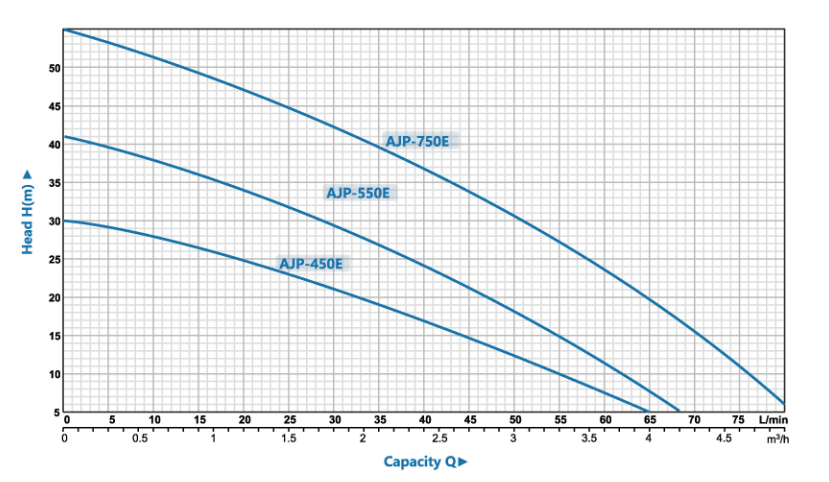

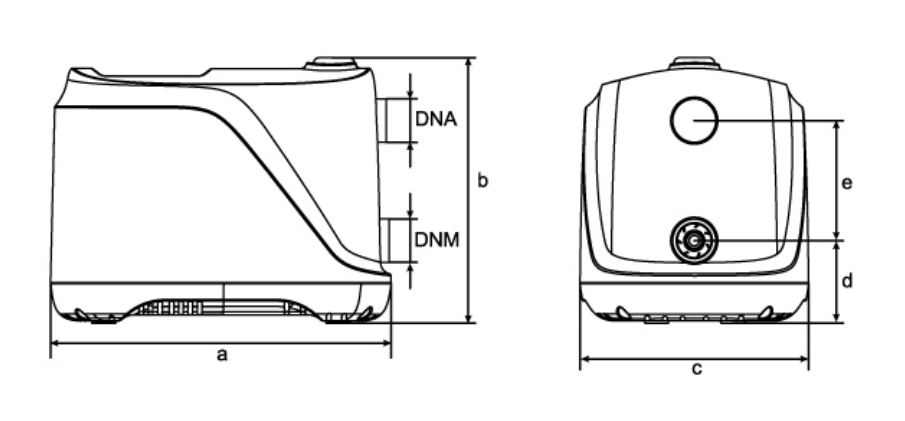

Product Selection
Application Fields
1.High-Rise Villa Full-Building Hydraulics
Issue:
Weak municipal water pressure often results in poor shower streams and ineffective toilet flushing in elevated structures, especially on uppermost levels.
Solution:
Place a full-building intensifier pump right after the internal water meter. This device employs advanced stage-by-stage amplification to maintain steady pressure across all stories, ensuring robust flow and adequate force at every tap.
2. Villa basement water pressurization
Issue:
Low water pressure impairs the heating capability of heat pumps and drastically delays hot water delivery, especially during periods of precipitation.
Solution:
Fit a steady-pressure recirculation pump at the tank exit. This stabilizes the internal system pressure and speeds up hot water movement, leading to energy conservation of greater than 20%.
3. Villa solar / air water heater auxiliary
Issue:
Inadequate pressure reduces the efficiency of heating pumps. This problem is exacerbated in wet conditions, where the water current can suddenly become very sluggish.
Solution:
Install an intensifier at the heater tank outlet. Its ability to maintain a set pressure quickens the circulation of hot water, thereby boosting the system's energy performance by over 20%.
4. Villa garden irrigation system pressurization
Problem:
Limited pressure in the garden restricts the reach of sprinklers, preventing complete hydration of green spaces and negatively impacting flora development.
Solution:
Integrate a shielded, rust-proof pump into the current piping layout. Using frequency conversion, it modifies output based on how many sprinklers are active, providing even coverage and saving roughly 30% on water usage.
Latest Booster Pumps and Paramrters
