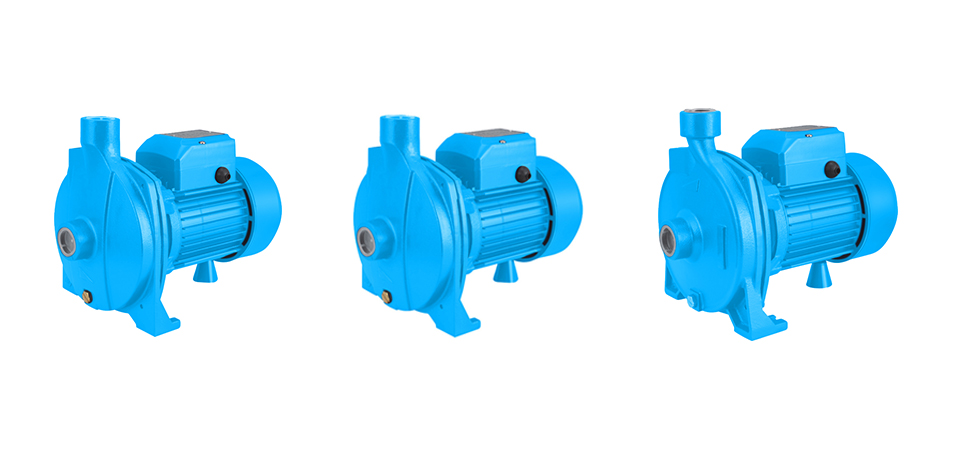

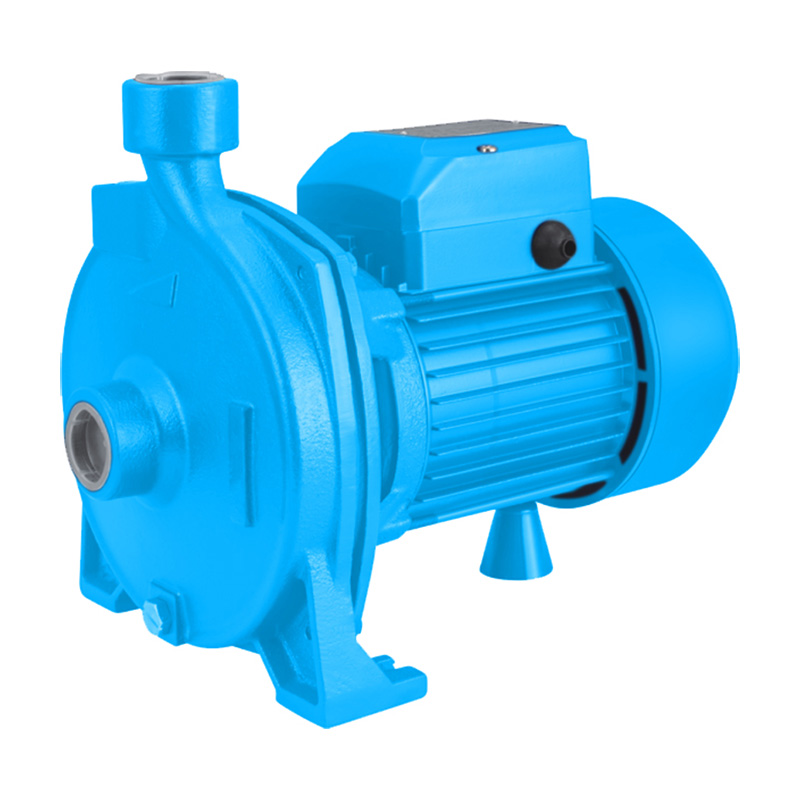

OGGIN CPM Series Centrifugal Pump
The CPM series pumps are specially designed in terms of performance and mechanical dimensions for use in civil, agricultural, and industrial fields. Due to their high efficiency and continuous operation capabilities, they are recommended for applications such as irrigation and pumping water from lakes, rivers, wells, and other water sources.
1.5kw
42m
10m³/h
Advantages of Centrifugal Pump
High-Temperature Resistant Mechanical Seal - Equipped with a high-temperature resistant mechanical seal made of silicon carbide sintered graphite, ensuring a long service life.
Wear-Resistant and Long-Lasting - Features an imported engineering plastic impeller, delivering lower noise across all operating conditions while resisting scaling for stable, long-term operation.
Safe and reliable - Coils use 100% pure copper enameled wire with F-class insulation. Built-in thermal protector provides dual safeguards against overheating and overload.
High-temperature bearings - Both front and rear bearings are high-temperature rated. Rear bearing features a crawler-type structure for high-temperature applications.
Electrostatic Coating Process - Metal components are coated with imported plastic powder and cured at high temperatures, delivering a rich, lustrous finish with an aesthetically pleasing texture.
Wide Voltage Design - When operating at input voltages of 176–264V, the motor exhibits a temperature rise of only 30–80K, ensuring smooth and reliable operation.

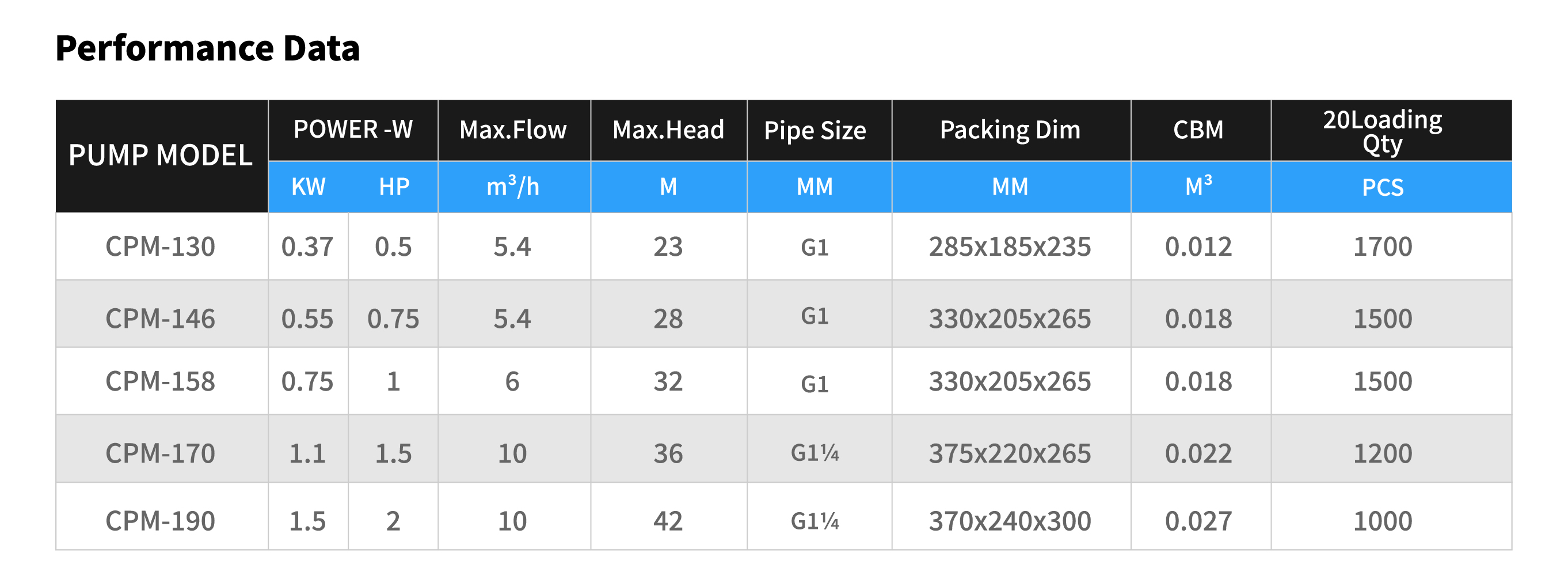

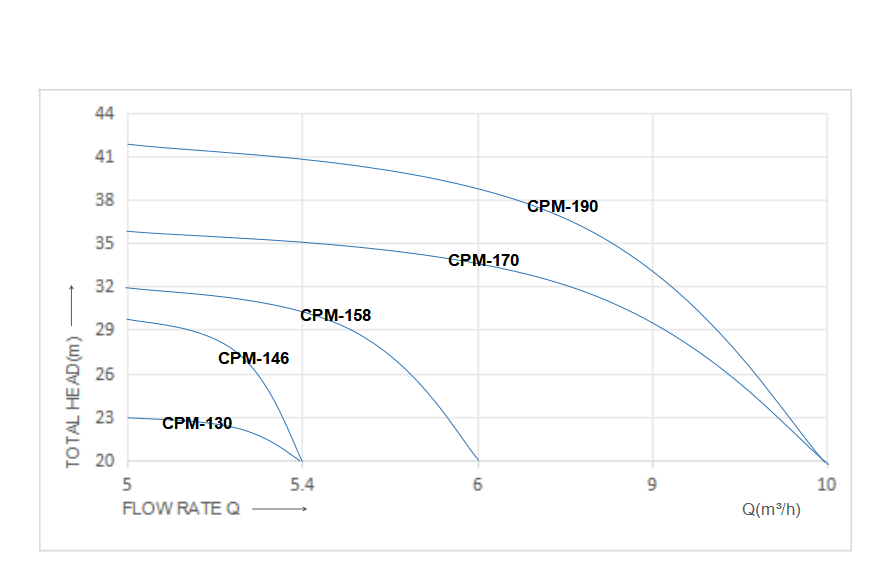

Product Selection
Application Fields
1. Landscape Irrigation
Applications：
Suitable for landscape sprinkler and mist irrigation systems in various outdoor settings such as urban parks, recreational plazas, golf courses, and villa estate gardens.
Advantages：
Flexible flow rate adjustment delivers energy-efficient performance, precisely matching the varying water requirements of different plants and flowers. Constructed from corrosion-resistant materials, the system resists oxidation and withstands wind and rain, ensuring long-term stability in complex outdoor environments.
2. Agricultural Irrigation
Applications：
Widely used in drip irrigation, sprinkler irrigation, and water-fertilizer integrated delivery systems for field crops, orchards, vegetable greenhouses, and other economic crops.
Advantages：
High water output volume with a wide adaptable head range, meeting large-scale farmland irrigation demands; Features an anti-clogging structure that effectively blocks silt and impurities, reducing particle wear on components and significantly improving water resource utilization efficiency.
3. Aquaculture Drainage
Applications：
Specialized for aeration, timed water exchange, circulation filtration, and effluent treatment in aquaculture settings like fish ponds, shrimp ponds, and hatchery tanks.
Advantages：
Constructed from acid/alkali-resistant, corrosion-proof materials suited for aquaculture environments; low-shear impeller design protects aquatic life like fry and shrimp while supporting external automation systems for intelligent operation.
4. Domestic Water Use
Applications：
Covers secondary pressure boosting for municipal pipelines, residential groundwater extraction, residential floor heating hot water circulation, and solar hot water system delivery.
Advantages：
Compact and space-saving design minimizes installation footprint; quiet operation ensures no disruption to daily living; safe and stable performance with robust protection features; seamlessly integrates with smart water appliances for coordinated operation.
