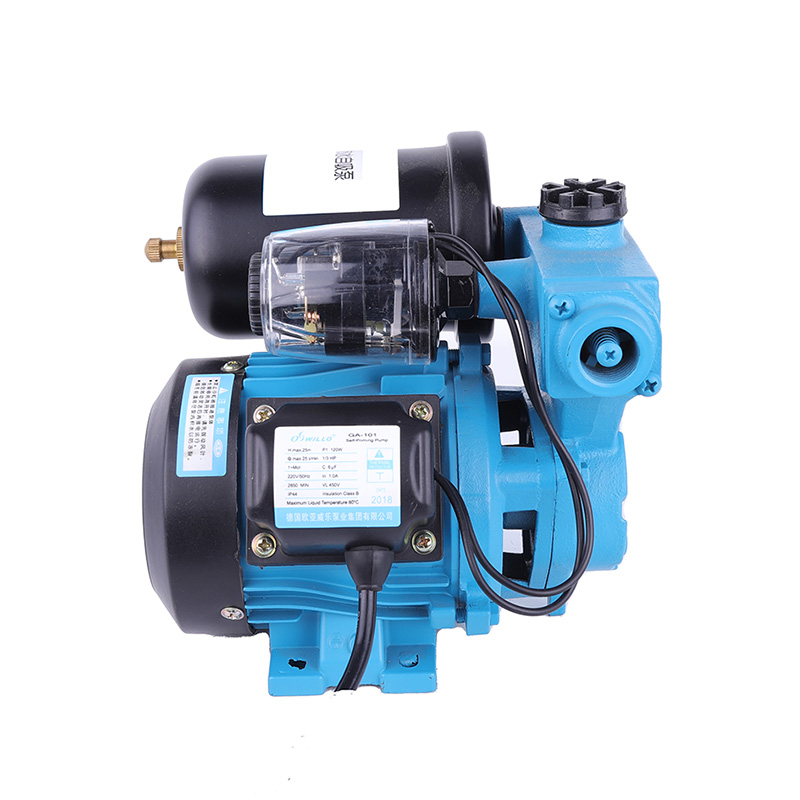

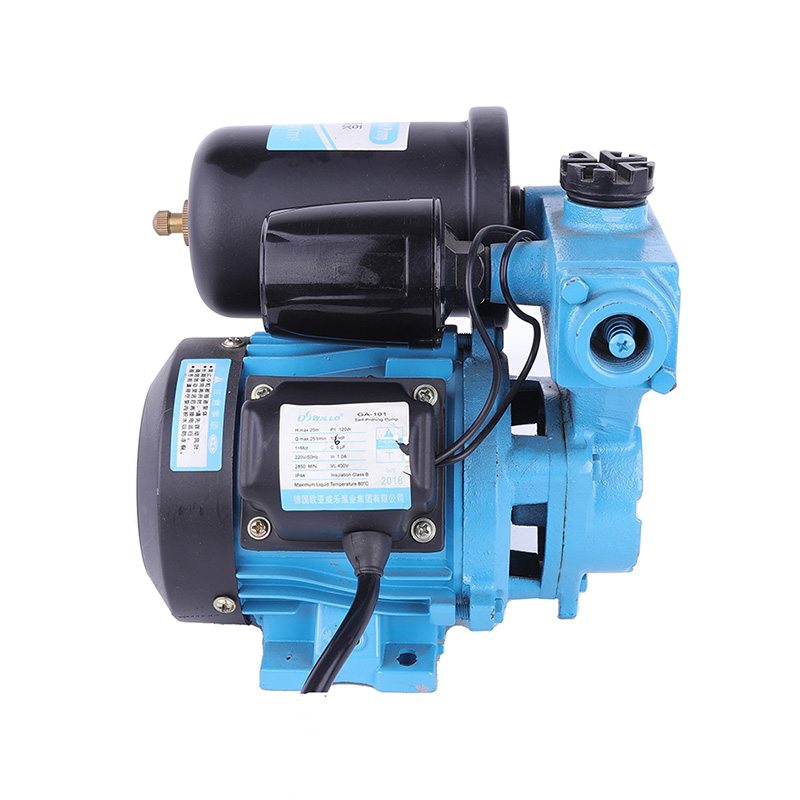

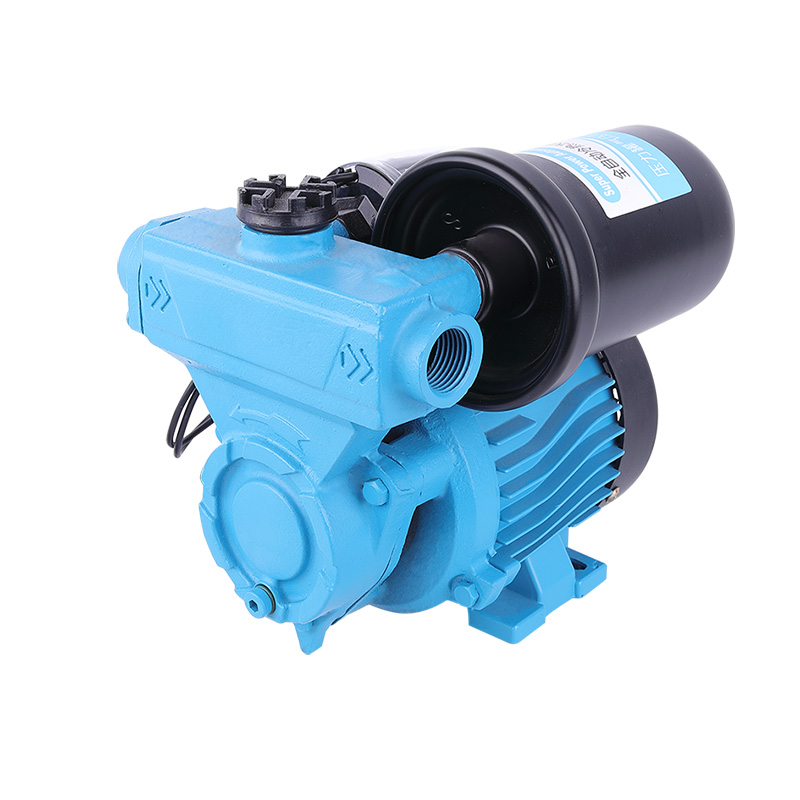

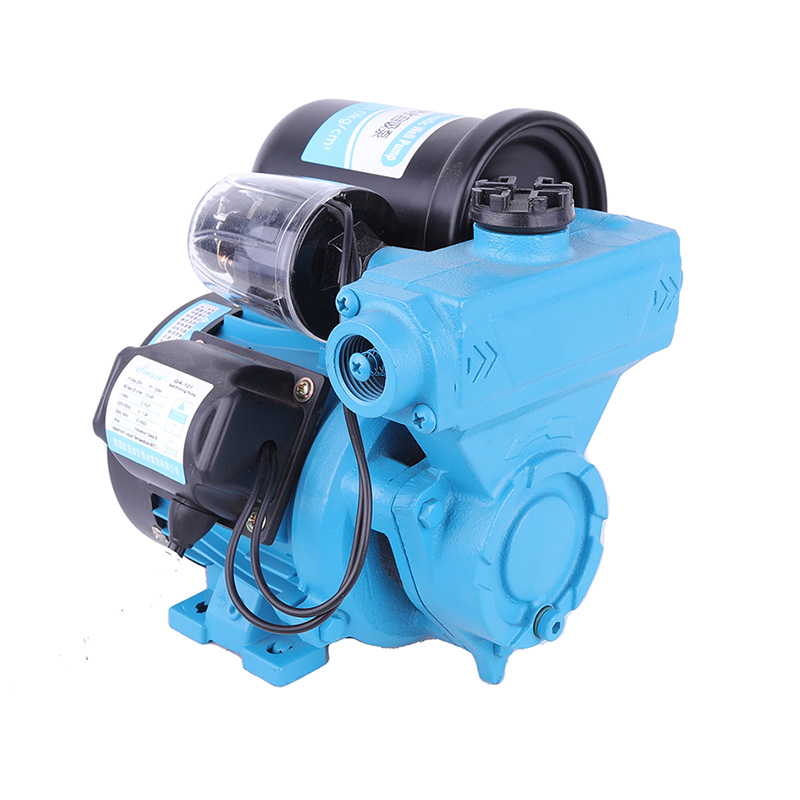

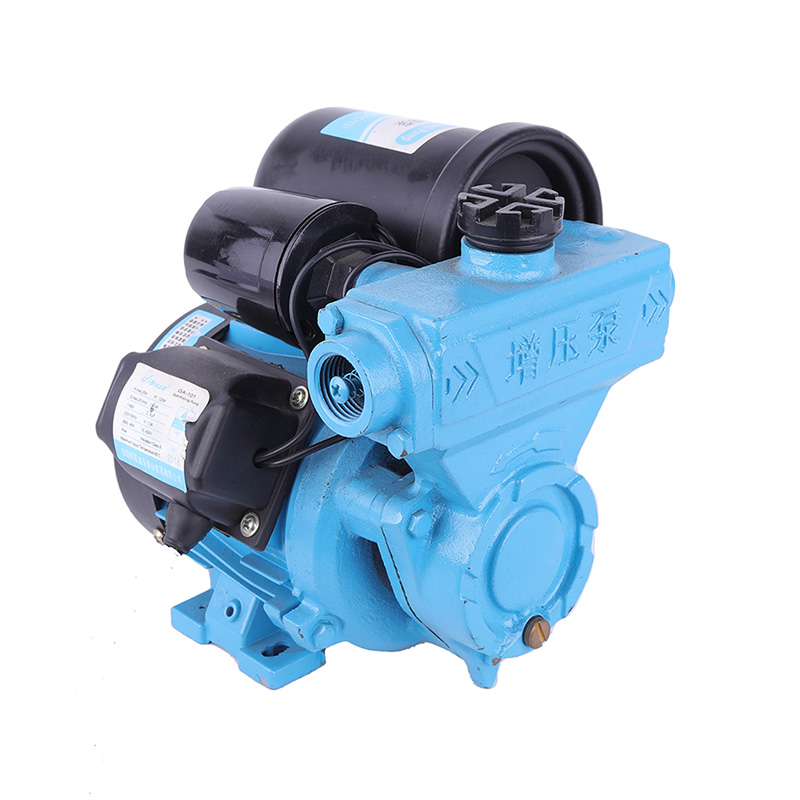

GA101 Non-clogging Self-priming Jet Stainless Steel Pumps

BrandOGGIN
Product originZHEJIANG
Delivery timeWithin 7-15 days
Supply capacity100000000

Self-priming pumps achieve automatic air venting and water intake through their unique internal structure (such as the gas-liquid separation chamber). Before the first start-up, a small amount of liquid is injected into the pump. As the impeller rotates, a vacuum is formed, which separates the air in the inlet pipe from the liquid and discharges it, thus continuously pumping the liquid. The self-priming height of these pumps can typically reach 8 meters. They have a compact structure, are easy to operate, and are widely used in agricultural irrigation, municipal water supply, industrial fluid transportation, and ship drainage, especially in situations where frequent starts are required or the water intake conditions are unstable.

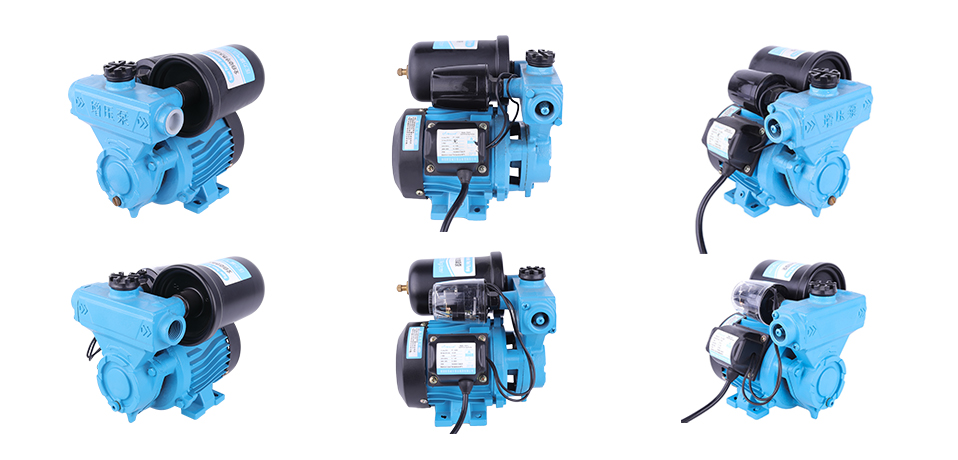

Non-clogging self-priming pumps

OGGIN GA Series Self-priming Pump

The OGGIN GA self-priming pump is a highly efficient device that combines automatic start-up with self-priming functionality. It automatically completes water priming upon initial start-up and maintains stable water flow during subsequent operation, eliminating the need for manual water replenishment throughout the entire process.

Max.Power

0.125kw

Max.Head

20m

Max.Flow

1.32m³/h

Advantages of Self-priming Pump

Maximum operating temperature of the medium - 0 - 90℃
PH -6.5-8.5
Operating conditions - Solid impurity volume fraction ≤0.1%, maximum particle size ≤0.2 mm.
This pump features a self-priming start design. Only initial priming fluid is required before first operation; no additional water is needed for subsequent use.
With an optimized hydraulic system and precision structural design, this product outperforms comparable electric pumps in efficiency, operational smoothness, and noise reduction.
Automatic control system - automatically starts/stops based on valve status: pump activates when valve opens and deactivates when valve closes.

Product Selection

Application Fields

1. Agricultural Irrigation

The pump can be installed above ground level and requires only a single water fill before startup. Its installation is straightforward, operation simple, and mobility flexible. It can handle water sources containing minor impurities, making it widely applicable for irrigation in farmlands, orchards, and greenhouses.

2. Construction Drainage

In daily life, standing water often cannot be drained through sewers, such as during excavation drainage at construction sites, basement water removal, or emergency flood drainage. This product is easily movable, adapts to complex construction environments, and can extract turbid wastewater containing fine particles like sand.

3. Residential and Commercial Water Supply

Building height restrictions often cause insufficient water pressure in daily life. This product efficiently draws water from low-level sources and pumps it to high-rise building tanks. Its compact design facilitates easy installation, operates with low noise, and suits residential use. It also supports solar water heating systems and boiler water supply.

4. Industrial Applications

Self-priming pumps serve as core equipment for efficient “start-up and transfer” in industrial processes, eliminating the need for pre-filling. They rapidly extract raw materials, intermediate products, and wastewater from low-level tanks, enabling continuous feeding, inter-process fluid transfer, and waste liquid recovery. This significantly enhances production automation and continuity while reducing downtime costs associated with pump priming, making them essential for stable production line operation.
